IGBT驅(qū)動(dòng)光耦
| Product | Package | size(LxWxHmm) | IFLH (Max) (mA) | VCC (Min) (V) | VCC (Max) (V) | tPHL(ns) | tPLH(ns) | Output Current (A) | CMR(V/us) | Topr (Min) (degC) | Topr (Max) (degC) | Viso (Vrms) |

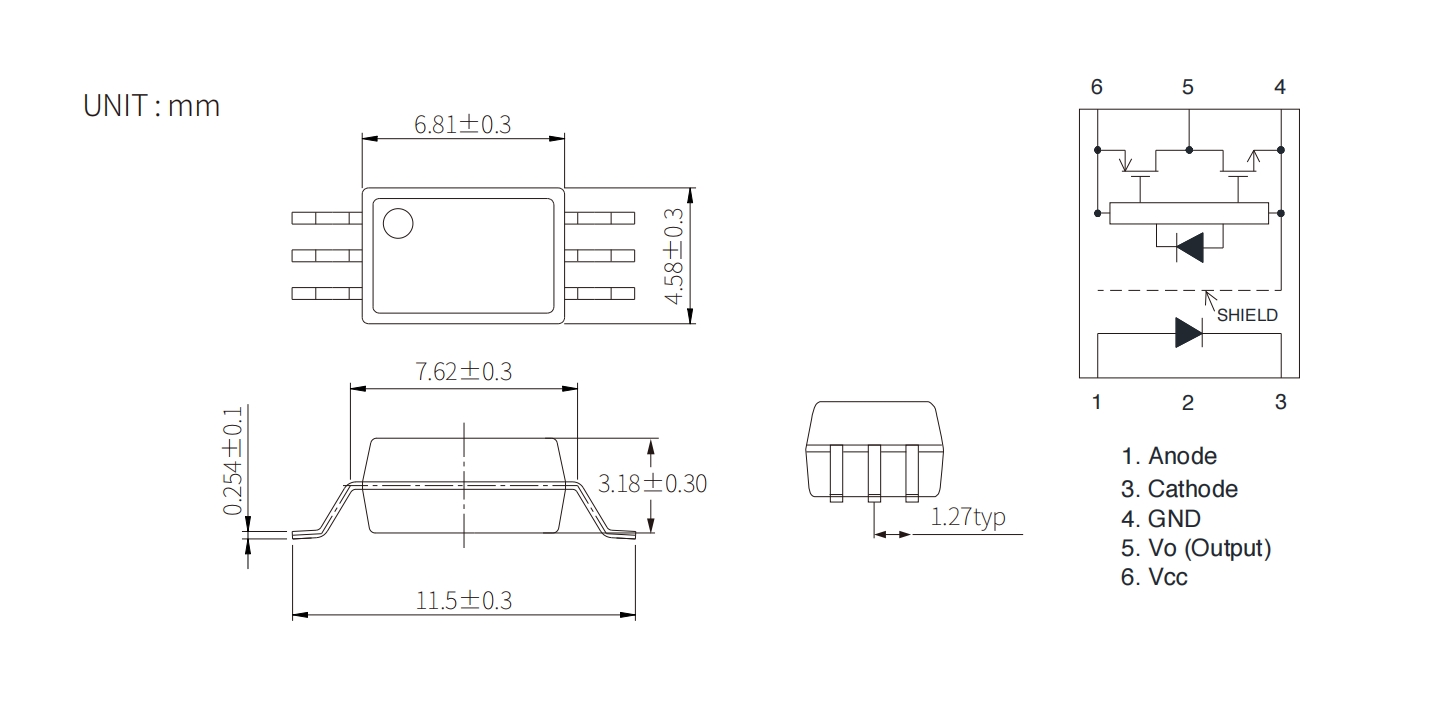

| KL341W | LSOP6 | 6.8x4.58x3.18 | 5 | 15 | 30 | 200 | 200 | 3 | 20000 | -40 | +105 | 5000 |
| Broadcom/Avago | Onsemi/Fairchild | Toshiba | Vishay | Liteon | EL | Cosmo | Sharp | QUNXIN |
| ACPL-W341 | TLP5752 | VOL3120 | LTV-341W | EL341W |
